The division to undertake OEM OEM production, quantity please contact our product department manager Wang 18094253333 price negotiable

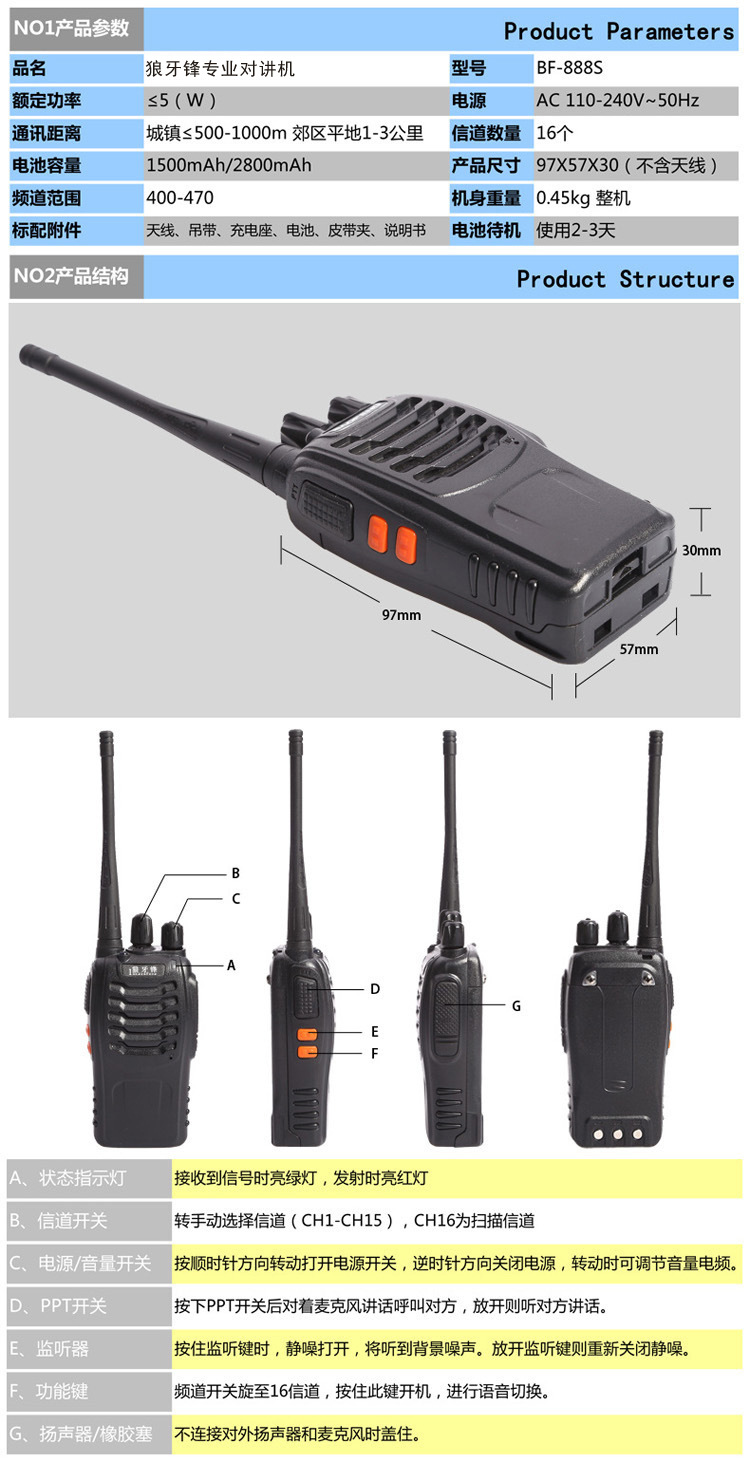

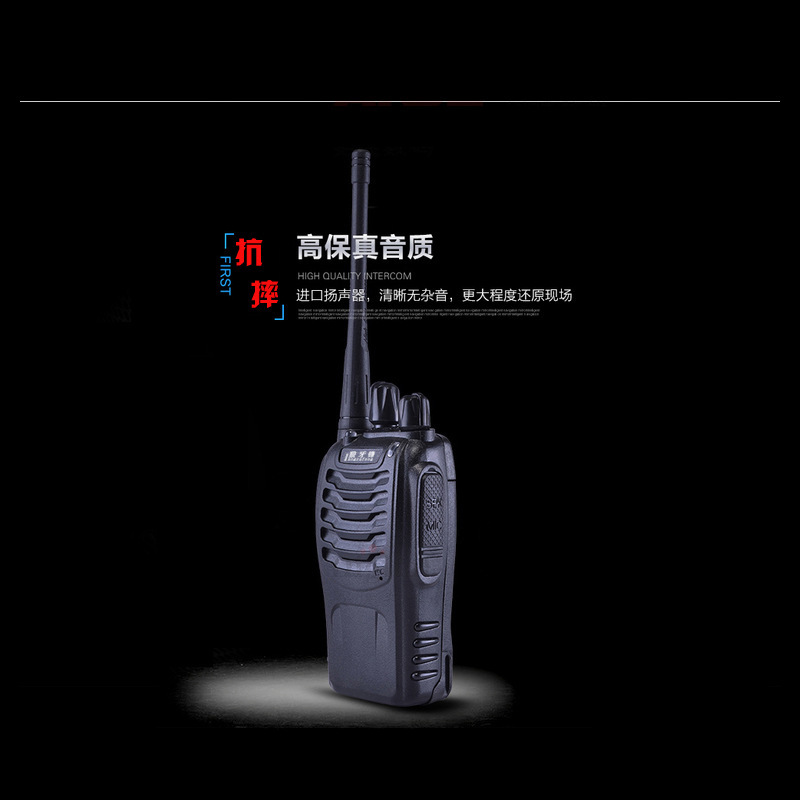

Technical parameters:

Output power: ≤5(W)
Frequency range: 400-470
Number of channels: 16(PCS)
Frequency band: 400-470
Encryption mode: CTCSS/DCSS
Dimensions: 97×57×30(mm) Height × width × thickness
Body weight: 220(g)
Operating voltage: 3.6V
Battery capacity: 2800MAH
Battery standby time: 45 hours (theoretical calculation)
Normal working time: 15 hours (theoretical calculation)
Antenna interface: SMA-J
Origin: Shenzhen

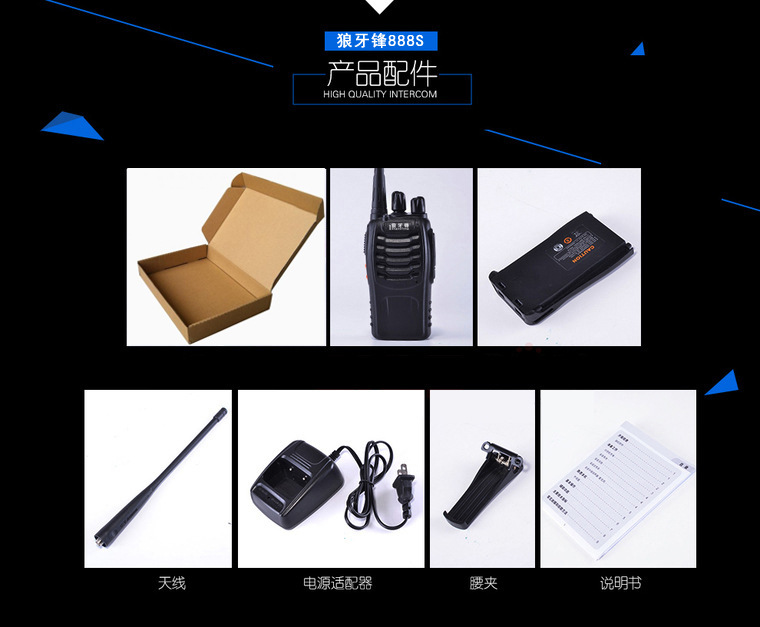

Original configuration: 3.7V-2800MAH battery, integrated smart charge, antenna, back clip, manual
Operating temperature range: -20 ~ 60℃
Antenna impedance: 50Ω
Channel step: 5, 10, 12.5, 25KHz
Modulation mode: F3E
Sensitivity: ≤0.2μV
Frequency stability: ±2.5ppm
Clutter and harmonics: ≤7.5uW
Audio output power: 500mW
Hum and noise: >40dB(12.5KHZ); >45dB(25KHZ)
Spurious response suppression: 60dB
Audio response: 300-3000HZ
SNR: 40dB
Intermodulation: 60dB
Co-channel rejection: >12dB(12.5KHZ); >8dB(20/25KHZ),ETS
Adjacent channel selectivity: >-60dB(12.5KHZ); >70dB(20/25KHZ)
RX audio distortion: ≤5%
TX audio distortion: 1KHZ, 60% frequency offset <5%
Remaining frequency modulation: 40dB
